The pelletizing production line Standard

The line is used for the efficient processing of biomass (hay, straw, peelings, threshing, weed, etc.) from grasses, grains, oil plants, leguminous plants, energy plants to quality fuel in the form of agro pellets.

Input materials

Input materials are packets of a cylinder shape with a diameter up to 150 cm, square packets of the size max. 150x150cm. For this can also be used loose or bulk materials. Input moisture of material is up to 14%. When the moisture is more than 14%, the line must be equipped with an intermediate level of drying. The basic design of lines assumes output of pellets in big bags or in containers. The operation of all lines is continuous. The management of the line is central on one control panel. . The line is served with one worker, including manipulation with packets, exchange of big-bags, etc.

Composition of the line:

• Input conveyor
• Shredder
• Pneumatic transport
• Intermediate tank (silo) including dust filtration
• Screw conveyor to the baler
• Baler

• Vapour and dust extractor
• Vibrating cleaning conveyor
• Cooling conveyor
• Stand for big-bags
• The control panel
• The switching station of complete line control

The line can be expanded according to customer's individual needs, e.g.

• Dryer
• Conveyor of loose material (hay, straw, etc.)

The pelletizing production line Plus

The line is identical to composition of the line “Standard”, supplemented by bunker and screw conveyor for admixtures.

The pelletizing production line PH

Input materials

Cutting waste or dry wood planning (sawdust, wood shavings). The moisture of input material should not exceed 14%. Otherwise it is necessary to dry the material.

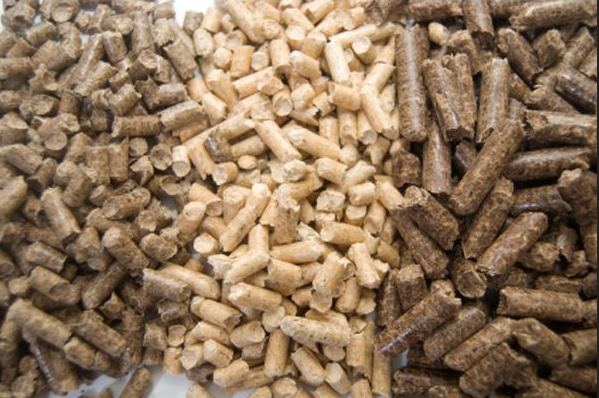

Output product - Pellets

• The output consists of strongly compacted granules of 6-14 mm (depending on the used special sieve) and a length of 1-3 times the diameter, without chemical additives
• Packed in a big bag, container, or loosely stocked

The basic production line composition:

• Input hopper with a conveyor
• Shredder
• Pneumatic transport
• Intermediate tank (silo) including dust filtration
• Baler
• Vapour and dust extractor
• Vibrating cleaning conveyor
• Cooling conveyor
• Stand for big-bags
• The control panel
• The switchboard

Modifications according to customer´s specifications

• Conveyors are adapted as needed, mixing of feeding mixtures, dryer, the packaging line, underpass silo, etc.
